Annotations in D3PLOT Viewer
7th June, 2023
We are excited to bring annotations to D3PLOT Viewer. Annotations takes the 3D experience one step further, allowing you to provide more context as you communicate clear, detailed insights to your team and stakeholders.
Key Highlights:
- View annotations that have been created using D3PLOT 20.0 or later
- Multiple annotations can be created to describe key features of the model to provide a detailed narrative of the results
- Use annotations as a way of recording key differentiators in your models
Learn more about transforming your workflow with D3PLOT Viewer and visit the D3PLOT Viewer home page to get started.
Version 1.4.0 features in detail

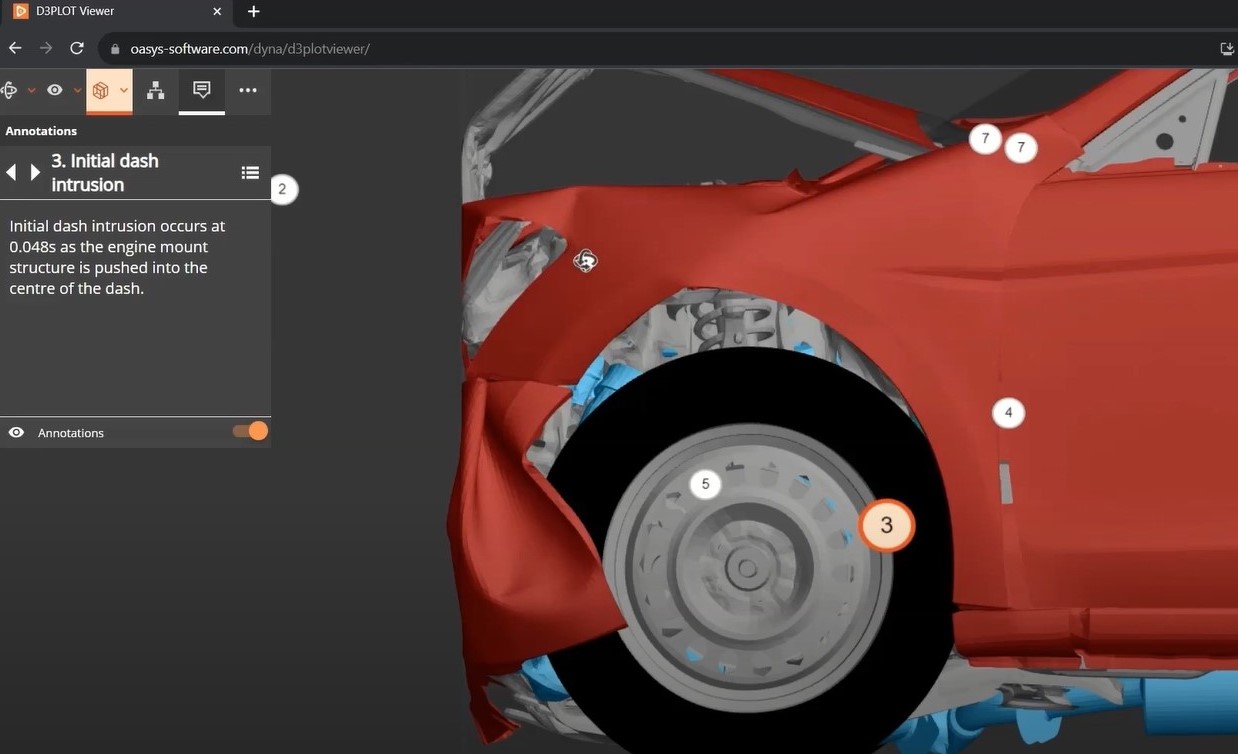

You can now load files containing annotations that have been created in D3PLOT Version 20. Annotations will be displayed by default in the new Annotations menu
Annotations
Navigating between annotations can be achieved by using the arrows next to the annotation title or using the drop down menu
Annotations can also have a marker associated with them to highlight the part or node where the annotation is referencing. The selected annotation is highlighted and clicking on the other markers is another way of navigating between annotations.
Documentation
To find further support and user-guide information, view the D3PLOT Viewer
documentation.
